Use these diagrams to identify the part you need for your Gemilai machine or grinder. Match the number in the diagram to the table below, then contact Espressimo with the item number and part name.
Some parts are available to order online. Others are support-only or reserved for warranty and service.
Use the item number in the diagram to identify the part you need. Linked items are available as product pages. Unlinked items can still be quoted to Espressimo support by item number and part name.
| Item | Part name | Material / specification |
|---|---|---|

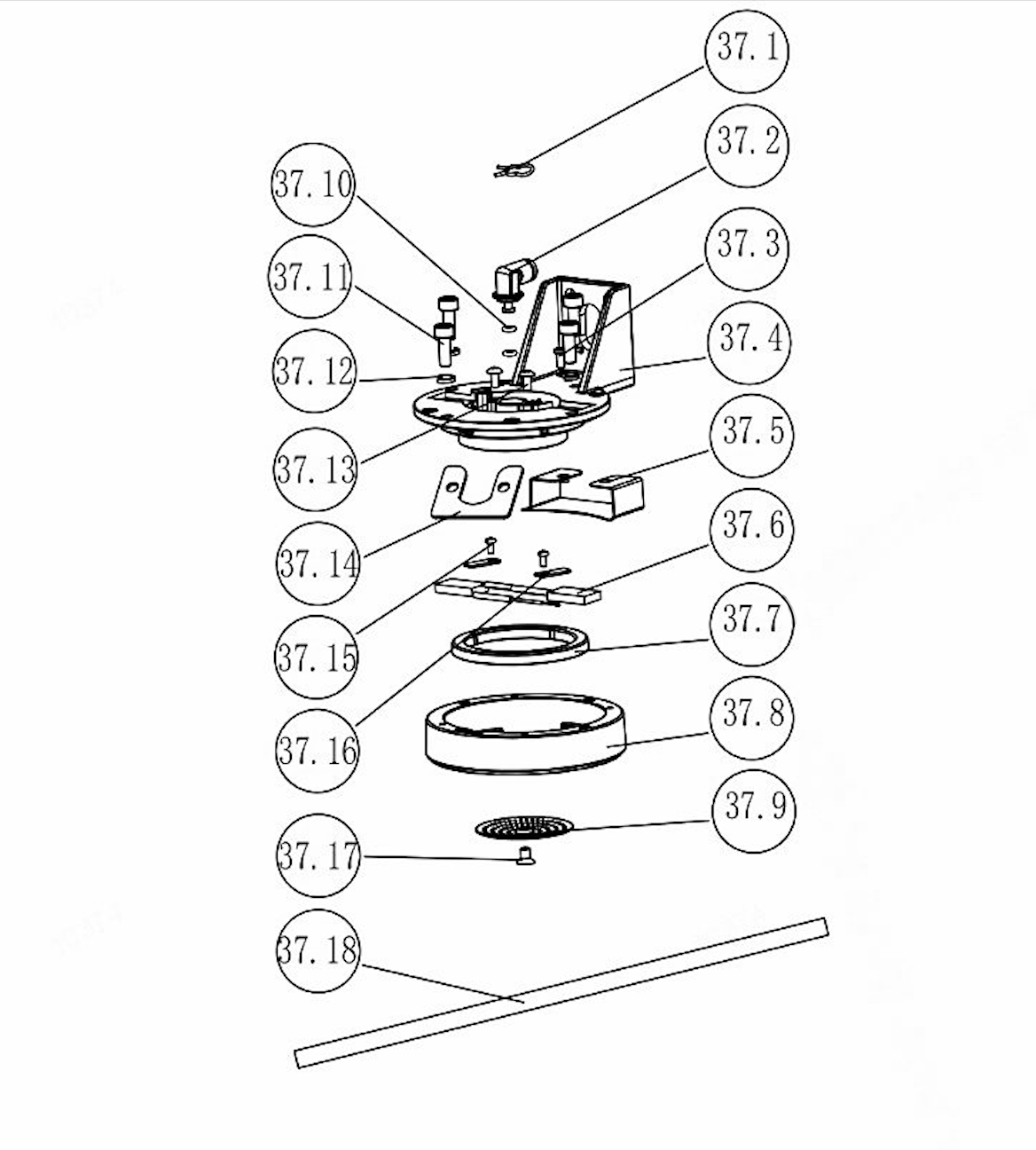

| 37 | Brewing head assembly | Aluminum parent assembly |
| 37.1 | Bayonet clip | 65Mn spring steel |
| 37.2 | Connector | Copper |
| 37.3 | Machine screw | M4 x 10 / SUS stainless steel |
| 37.4 | Boiler bottom cover | Aluminum |
| 37.5 | Suspension bracket | SUS stainless steel |
| 37.6 | PTC | CQC / 220V / 50Hz / 50W |
| 37.7 | Funnel seal ring 3 | Silicone |
| 37.8 | Funnel bracket | Aluminum |
| 37.9 | Filter sheet | SUS, material to be verified when spare parts arrive |
| 37.10 | Pressure tube seal ring | Dia. 3.5 x dia. 2 / fluororubber |
| 37.11 | Machine screw | M6 x 16 / SUS stainless steel |
| 37.12 | Spring washer | Dia. 6.1 x dia. 9.3 x 1.6 / SUS stainless steel |
| 37.13 | Machine screw | M4 x 8 / SUS stainless steel |
| 37.14 | Press plate | SUS stainless steel |
| 37.15 | Machine screw | M3 x unclear / SUS stainless steel; source image partly obscured |
| 37.16 | Fuse press plate | Galvanized plate |
| 37.17 | Machine screw | M5 x 8 / SUS stainless steel |
| 37.18 | Pressure-resistant tube assembly 1 | Dia. 4 mm / L=300 mm |
Use the item number in the diagram to identify the part you need. Linked items are available as product pages. Unlinked items can still be quoted to Espressimo support by item number and part name.
| Item | Part name | Material / specification |
|---|---|---|

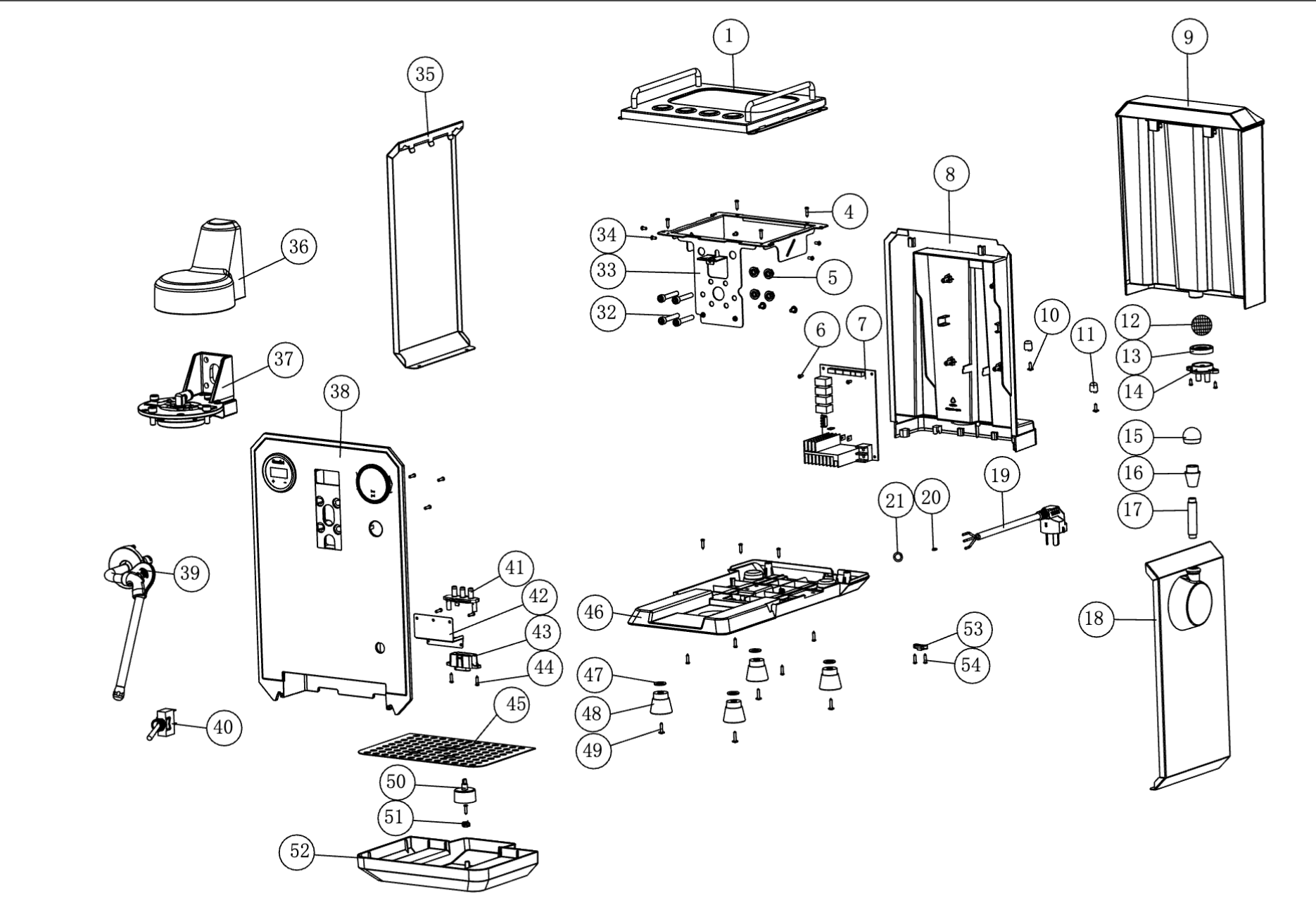

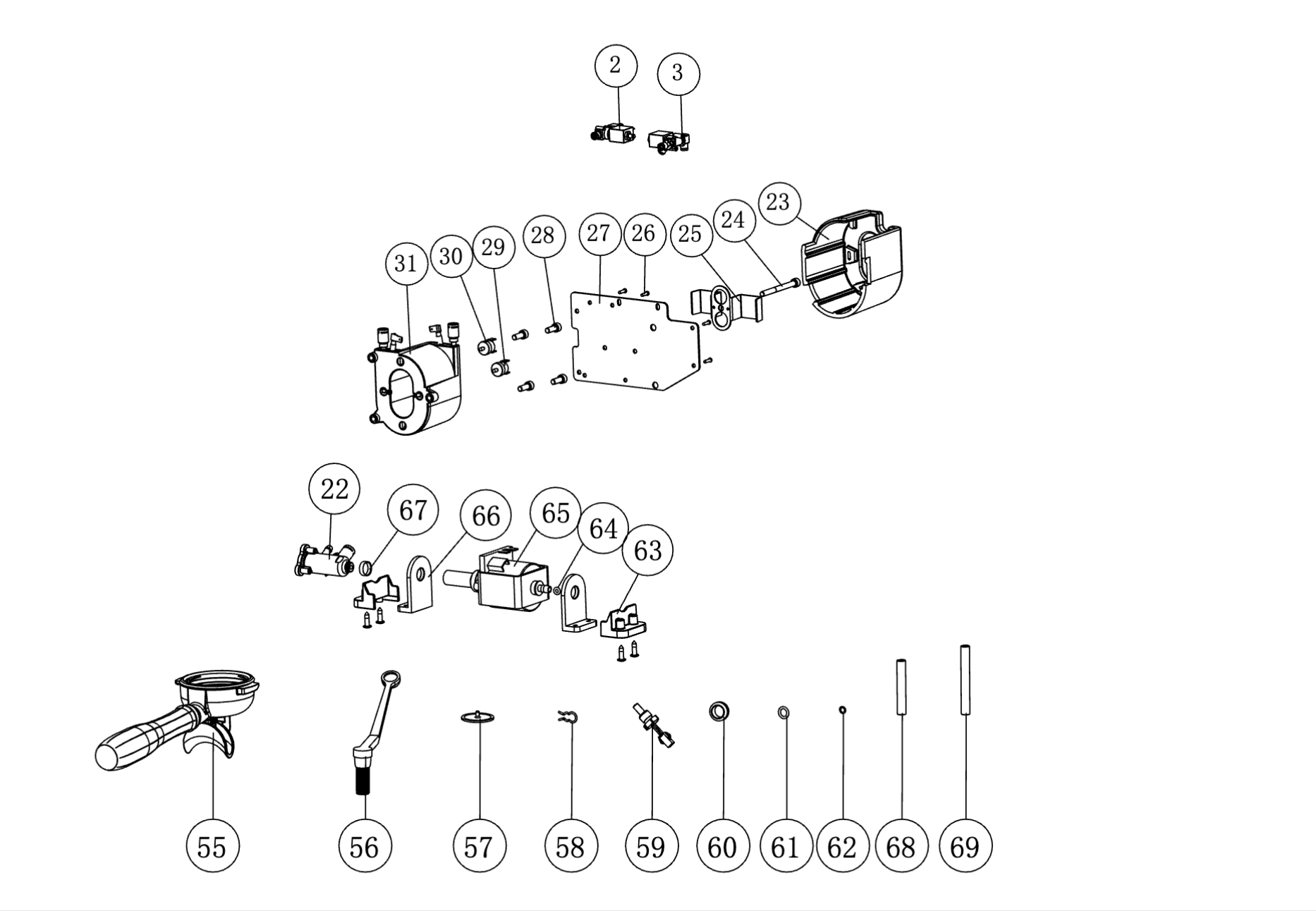

| 1 | Top cover assembly | Stainless steel / natural finish |
| 2 | Coffee solenoid valve assembly | Copper / 18 bar / 2-way 3-port / G1/8 female |
| 3 | Steam solenoid valve assembly | Copper / 18 bar / 2-way 2-port / G1/8 female |
| 4 | Self-tapping screw | ST3 x 12 / Phillips / pan head / zinc-plated carbon steel |
| 5 | Nut | M6 x 5.8 / stainless steel / anti-slip / right-hand thread |
| 6 | Self-tapping screw | ST3 x 10 / Phillips / pan head / carbon steel |
| 7 | Power board | CE / 220-240V |
| 8 | Water tank bracket | ABS / smooth / black |
| 9 | Water tank assembly | AS / 1.7L / transparent |
| 10 | Self-tapping screw | ST3 x 10 / Phillips / washer head / stainless steel |
| 11 | Fixing column | ABS / smooth / black |
| 12 | Filter mesh | Stainless steel |
| 13 | Water tank inlet connector seal ring | Silicone / transparent |
| 14 | Water tank inlet connector | PP / smooth / black |
| 15 | Handle cover | Stainless steel |
| 16 | Handle | PA6 / smooth / black |
| 17 | Connecting rod | Stainless steel |
| 18 | Right cover assembly | Stainless steel / natural finish |
| 19 | Power cord assembly | 3 x 0.75 mm² / CE / black |
| 20 | Spring washer | Dia. 3.1 x dia. 4.7 x 0.8 / zinc plated |
| 21 | External tooth lock washer | Dia. 3 x dia. 6.5 x 0.4 / carbon steel / zinc plated |
| 22 | Safety valve assembly | Plastic |
| 23 | Insulation sleeve 1 | DPS / black / internal part |
| 24 | Machine screw | M6 x 65 / hex socket / cylindrical head / zinc-plated carbon steel |
| 25 | Boiler fixing plate | Stainless steel / natural finish |
| 26 | Self-tapping screw | ST4 x 16 / Phillips / pan head / stainless steel |
| 27 | Boiler bracket | Stainless steel / natural finish |
| 28 | Machine screw | M3 x 16 / Phillips / pan head / carbon steel |
| 29 | Snap-action thermostat 200 C | 200 C / 250V / 16A / auto reset / copper base |
| 30 | Manual reset thermostat 250 C | 250 C / 250V / 16A / manual reset / copper base |
| 31 | Heating boiler | CQC / 220V / 50Hz / 1460W / copper-plated steel tube |
| 32 | Machine screw | M6 x 35 / hex socket / cylindrical head / stainless steel |
| 33 | Bracket plate | Stainless steel / natural finish |
| 34 | Machine screw | M3 x 8 / Phillips / washer head / zinc plated |
| 35 | Left cover | Stainless steel / natural finish |
| 36 | Brewing head cover | Zinc alloy / black |
| 37 | Brewing head assembly | See the brewing-head diagram table for sub-parts |
| 38 | Front panel assembly | Stainless steel + black |
| 39 | Steam tube assembly | Copper / dia. 10 / 255 mm / flat end / 2 holes |
| 40 | Toggle switch | 250V / 10A |
| 41 | Drain box cover | PP / black |
| 42 | Water outlet bracket | Stainless steel / natural finish |
| 43 | Drain box | PP / black |
| 44 | Self-tapping screw | ST3 x 12 / Phillips / pan head / stainless steel |
| 45 | Cup tray | Stainless steel / natural finish |
| 46 | Base | ABS / black |
| 47 | Flat washer | Dia. 3.2 x dia. 8 x 0.6 / stainless steel |
| 48 | Rubber foot | Silicone / black |
| 49 | Self-tapping screw | ST3 x 14 / Phillips / washer head / stainless steel |
| 50 | Float | PP / red |
| 51 | Float cover | PP / smooth / red |
| 52 | Drip tray | ABS / smooth / black |
| 53 | Wire clamp | PA66 / black |
| 54 | Self-tapping screw | ST3 x 16 / Phillips / pan head / carbon steel |
| 55 | Double cup high-pressure portafilter assembly | 58 mm / stainless steel / plastic handle / black |
| 56 | Brush | PP / black / bristle implanted |
| 57 | Cleaning pad | Silicone / black |
| 58 | Bayonet clip | 65Mn steel / nickel plated |
| 59 | Temperature sensor | 3950K / R25=100K / M6 / copper housing |
| 60 | Protective coil | Silicone / black |
| 61 | Connector seal ring | Dia. 7.5 x dia. 2 / fluororubber / brown |
| 62 | Pressure tube seal ring | Dia. 3.5 x dia. 2 / fluororubber / brown |
| 63 | Pump bracket | PP / smooth / black |
| 64 | Adjusting shaft seal ring | Dia. 6 x 2 / silicone / red |
| 65 | Water pump | VDE / 230V / 50Hz / 48W / 15 bar / CEME EP5 |
| 66 | Pump buffer block | Silicone / black |
| 67 | Pump protection ring | Iron / white zinc plated |
| 68 | Pressure-resistant tube assembly 2 | PTFE / dia. 4 mm / L=150 mm |
| 69 | Pressure-resistant tube assembly 1 | PTFE / dia. 4 mm / L=190 mm |
Use the item number in the diagram to identify the part you need. Linked items are available as product pages. Unlinked items can still be quoted to Espressimo support by item number and part name.
| Item | Part name | Material / specification |
|---|---|---|

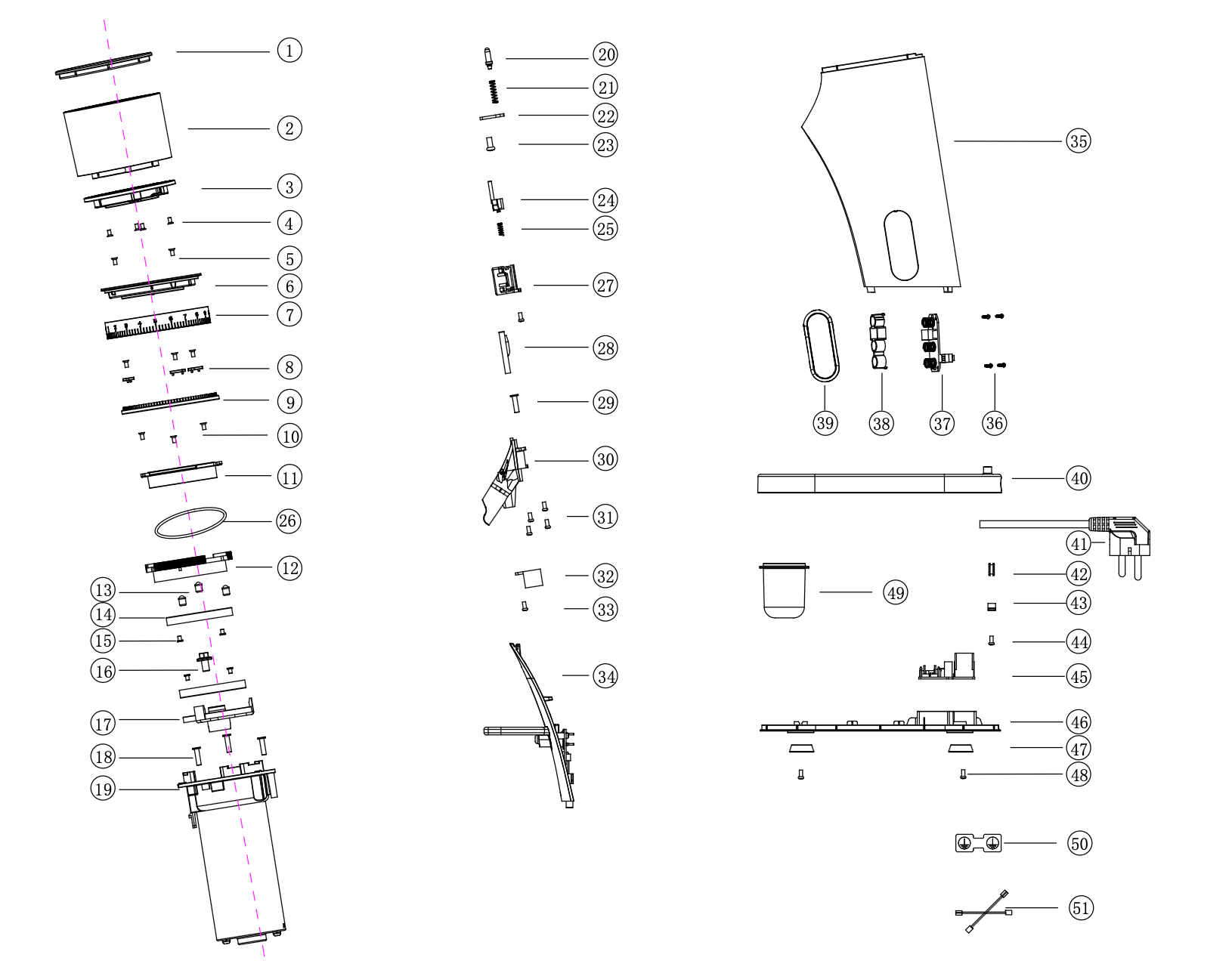

| 1 | Bean Hopper Lid ASM | ABS |
| 2 | Bean Hopper ASM | AS |
| 3 | Bean Hopper Bracket | ABS |
| 4 | Self-tapping screw | ST3 x 12 / SUS |
| 5 | Machine screw | M3 x 6 / SUS |
| 6 | Fixing bracket | ABS |
| 7 | Dial | Aluminum |
| 8 | Press block | Aluminum |
| 9 | Adjustment shaft | Aluminum |
| 10 | Machine screw | M3 x 12 / SUS |
| 11 | Upper blade disc bracket | Aluminum |
| 12 | Adjustment disc | Aluminum |
| 13 | Ball plunger | SUS / Dia. 6.5 x 8.9 mm |
| 14 | Blade disc / burr set | SUS |
| 15 | Machine screw | M4 x 8 |
| 16 | Machine screw | M6 x 12 / SUS |
| 17 | Lower blade disc bracket | Aluminum |
| 18 | Machine screw | M4 x 20 / SUS |
| 19 | Motor ASM | 220-240V / 50/60Hz / 160W |
| 20 | Drip needle | CU / Dia. 4 x 13 mm |
| 21 | Drip needle spring | 1.5N / dia. 0.3 mm |
| 22 | Drip needle press plate | SUS |
| 23 | Machine screw | M3 x 8 |
| 24 | Switch lever | PC |
| 25 | Switch lever spring | 4N / dia. 0.4 mm |
| 26 | Adjustment shaft seal ring | Silicone / Dia. 57.5 x dia. 2 mm |
| 27 | Switch bracket | PC |
| 28 | Seal gasket | Silicone / 28.5 x 22.9 |
| 29 | Insert pin | PP |
| 30 | Grind outlet / dosing funnel | AS |
| 31 | Machine screw | M3 x 12 |
| 32 | Plasma generator | CQC / 180-250V / 50/60Hz |
| 33 | Self-tapping screw | ST3 x 8 |
| 34 | Front cover ASM | Aluminum |
| 35 | Main body | Aluminum |
| 36 | Self-tapping screw | ST2 x 8 |
| 37 | Control board | CCC / DC5V |
| 38 | Fixing bracket | ABS |
| 39 | Panel ASM | ABS |
| 40 | Base | Aluminum |
| 41 | Power cord ASM | 3 x 0.75 mm2 / VDE / 1.08 |
| 42 | Silicone sheath | Silicone |
| 43 | Cable clamp | PA66 |
| 44 | Self-tapping screw | M3 x 12 / SUS |
| 45 | Power board | CCC / 220V |
| 46 | Bottom cover | ABS |
| 47 | Rubber foot | Silicone / Dia. 23.6 x 8.6 |
| 48 | Machine screw | M4 x 10 |
| 49 | Powder cup | AS |
| 50 | Grounding label | 37 x 14.3 mm |
| 51 | Internal wiring ASM | CCC / CE / 5 kinds 5 items |
